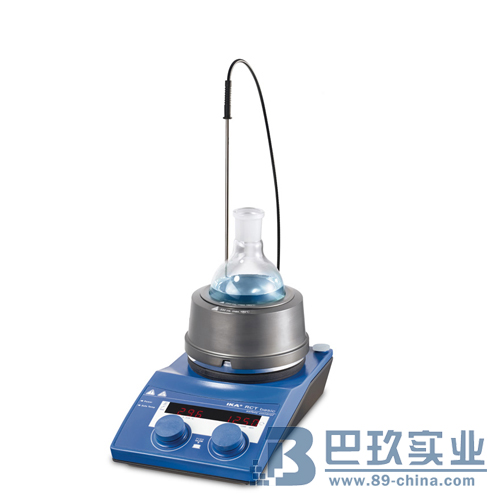

The reaction block allows synthesis to be carried out in round flasks at temperatures of up to 180 °C. This system ensures optimal heat transfer from the heating plate directly into the medium. Uniform mixing is also guaranteed because there is no interference to the magnetic field from the aluminium blocks. The PTFE coating prevents burning and ensures that working with the system is safe. Reaction blocks are available in three standard sizes. These can be adapted to various flask sizes using the appropriate inserts.

• Synthesis in round flasks at up to 180 °C
• Uniform mixing
• High-precision thermal conduction directly into the reaction block
• PTFE coating protects against burning
• Wide range of applications thanks to exchangeable inserts
• Safe and clean working
•

• Package consists of:
• RCT basic safety control
• H 135.30 Flask Carrier without handle, 500 ml
• H 135.302 Flask inlay, 250 ml
• H 16 V Support rod
• H 44 Boss head clamp
• H 38 Holding rod

搅拌点位数目	1
髙至搅拌量 (H2O)	20 l
电机输入功率	16 W
电机输出功率	9 W
转速显示	LED
速度范围	0/50 - 1500 rpm
搅拌子髙至长度	80 mm
加热输出功率	600 W
加热速度 1升H2O in H 15)	6.5 K/min
加热温度范围	室温 - 310 °C
加热温度控制	LED
加热温度控制[accurate度	1 ±K
转速控制	无级
可调安全温度回路低至值	50 °C
可调安全温度回路髙至值	360 °C
外接温度传感器接口	PT1000
带传感器控温[accurate度	1 ±K
工作盘材质	铝合金
工作盘外形尺寸	Ø 135 mm
外形尺寸	160 x 85 x 270 mm
重量	2.5 kg
允许环境温度	5 - 40 °C
允许相对湿度	80 %
DIN EN 60529 保护方式	IP 42
电压	220 - 230 / 115 / 100 V
频率	50/60 Hz
仪器输入功率	650 W
